Blue FTTH Fiber Optic Connectors Short Type MT1041-SC Fast Connect

Name: Blue FTTH Fiber Optic Connectors Short Type MT1041SC Fast Connect
Brand: MELONTEL
Price: 1 USD

Quality Blue FTTH Fiber Optic Connectors Short Type MT1041-SC Fast Connect wholesale

Brand Name : MELONTEL

Model Number : MT-1041-SC

Certification : ISO9001:2008

Place of Origin : Zhejiang, China (Mainland)

MOQ : 100 Pieces

Price : US $0.3-1 / Pieces

Payment Terms : Western Union, L/C, T/T

Supply Ability : 1000 Piece/Pieces per Day

Delivery Time : 5 days

Packaging Details : 10 PCS /BOX

Product name : Fiber Optic Fast Connector

Application : FTTH

Connector type : SC/UPC

Connect type : Mechanical

Color : Blue

Length : 50mm

Fiber type : Single-mode

Packing : 10 pcs /box

Contact Now

MT-1041-SC Short Type Fiber Optic Connector FTTH Optical SC/UPC Fast Connector

Quick Details:
Place of Origin:Zhejiang, China (Mainland) Brand Name:MELONTEL
Model Number:MT-1041-SC Product name:Fiber Optic Fast Connector
Application:FTTH Color:Blue
Connector type:SC/UPC Length:50mm
Fiber type:Single-mode Connect type:Mechanical
Packing:10 pcs /box OEM:Welcome
Certification:ISO9001:2008

Supply Ability:
1000 Piece/Pieces per Day

Packaging & Delivery:

Packaging Details:10 PCS /BOX
Port:NingBo
Lead Time :5 days

Product specification:

Mode	SM
Operation Time	about 15s(exclude fiber presetting)
Insertion Loss	≤ 0.3dB(1310nm & 1550nm)
Return Loss	≤ -45dB
Success Rate	>98%
Reusable Times	>10 times
Tighten Strength of Naked Fiber	>5 N
Tensile Strength	>50 N
Teperature	-40~+85℃
On-line Tensile Strength Test (20 N)	IL ≤ 0.3dB
Mechanical Durability(500 times)	IL ≤ 0.3dB
Drop Test(4m concrete floor, once each direction, three times total)	IL ≤ 0.3dB

Blue FTTH Fiber Optic Connectors Short Type MT1041-SC Fast Connect
Product features:
Mechanical Field-Mountable Fiber Optic Connector is designed to simple the connection without fusion splicing machine. This connector is quick assembly which requires only normal fiber preparation tools: cable stripping tool and fiber cleaver. The connector adopts Fiber Pre-embed Tech with superior ceramic ferrule and aluminum alloy V-groove. Also, transparent design of the side cover which allows visual inspection.Applicable to connection with field mountable indoor cable, pigtail, patch cord and transformation of patch cord in data room and directly used in specific ONU.

Product Tags:

fast connect fiber connectors

fiber optic fc connector

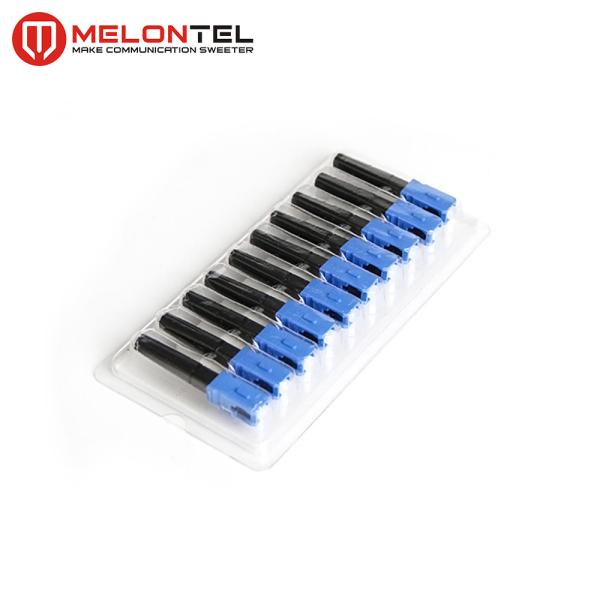

Blue FTTH Fiber Optic Connectors Short Type MT1041-SC Fast Connect Images
