Single Mode Fiber Optic LC Connector , MT1041 Fast Connect Fiber Connectors

Name: Single Mode Fiber Optic LC Connector MT1041 Fast Connect Fiber Connectors
Brand: MELONTEL
Price: 1 USD

Quality Single Mode Fiber Optic LC Connector , MT1041 Fast Connect Fiber Connectors wholesale

Brand Name : MELONTEL

Model Number : MT-1041-LC

Certification : ISO9001:2008

Place of Origin : Zhejiang, China (Mainland)

MOQ : 100 Pieces

Price : US $0.3-1 / Pieces

Payment Terms : Western Union, L/C, T/T

Supply Ability : 1000 Piece/Pieces per Day

Delivery Time : 5 days

Packaging Details : 10 PCS /BOX

Product name : Fiber Optic Fast Connector

Application : FTTH

Connector type : LC/UPC

Connect type : Mechanical

Color : Blue

Length : 60mm

Fiber type : Single-mode

Packing : 10 pcs /box

Contact Now

MT-1041-LC Fiber Optic Connector FTTH Optical LC/UPC Fast Connector

Quick Details:
Place of Origin:Zhejiang, China (Mainland) Brand Name:MELONTEL
Model Number:MT-1041-LC Product name:Fiber Optic Fast Connector
Application:FTTH Color:Blue
Connector type: LC/UPC Length:60mm
Fiber type:Single-mode Connect type:Mechanical
Packing:10 pcs /box OEM:Welcome
Certification:ISO9001:2008

Supply Ability:
1000 Piece/Pieces per Day

Packaging & Delivery:

Packaging Details:10 PCS /BOX
Port:NingBo
Lead Time :5 days

Product specification:

Mode	SM
Operation Time	about 15s(exclude fiber presetting)
Insertion Loss	≤ 0.3dB(1310nm & 1550nm)
Return Loss	≤ -45dB
Success Rate	>98%
Reusable Times	>10 times
Tighten Strength of Naked Fiber	>5 N
Tensile Strength	>50 N
Teperature	-40~+85℃
On-line Tensile Strength Test (20 N)	IL ≤ 0.3dB
Mechanical Durability(500 times)	IL ≤ 0.3dB
Drop Test(4m concrete floor, once each direction, three times total)	IL ≤ 0.3dB

Single Mode Fiber Optic LC Connector , MT1041 Fast Connect Fiber Connectors
Product features:
Factory-installed fiber stub.
No epoxy and polishing required, No special tools needed when installed.
Allows up to three re-termination result.
Easily installed, Quick and easy fiber termination in the field.
Only 30 seconds needed to learn the process of installation and making.
Cost effective, Warranty: One year.
Fast connecting and repeat, No special tools needed when installed.
Can be made on-site without splicing connectors.
Eliminates cable excess length and pigtail splice storage.

Can be intalled and maked repeatedly thus avoiding loss.

Product Tags:

fiber cable connectors

fiber optic fc connector

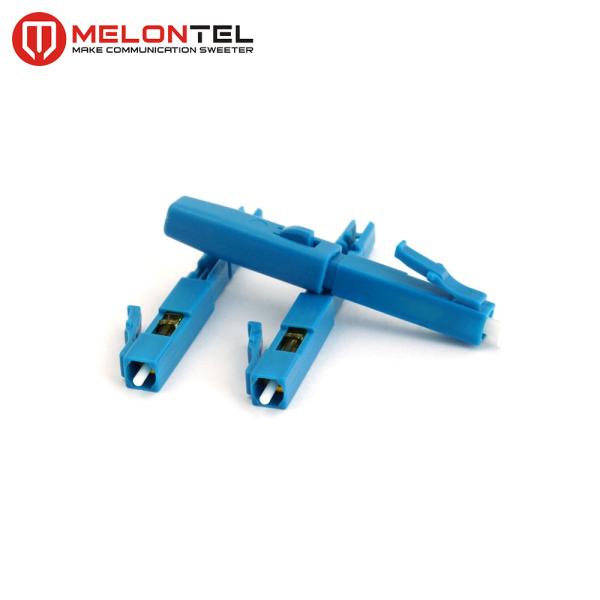

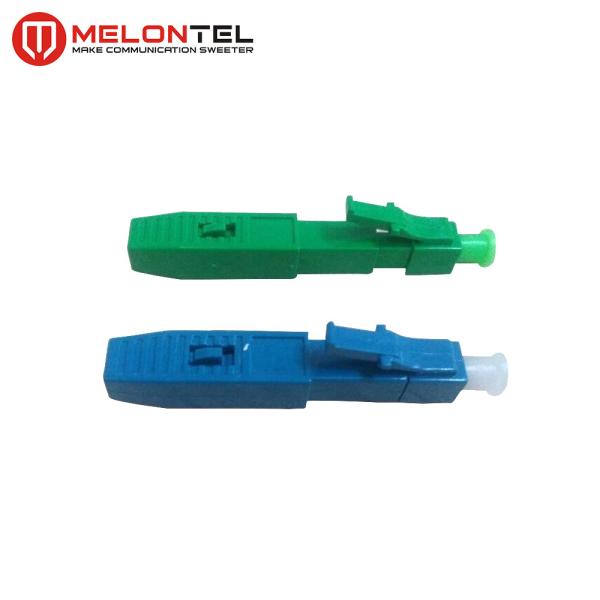

Single Mode Fiber Optic LC Connector , MT1041 Fast Connect Fiber Connectors Images
